Curved Glass Refrigerated Cold Plate & Cross Fin Coil

Features:

Curved glass refrigerated cold plate with cross fin coil foodbar
Provides cooling from bottom (cold plate) and top (cross fin coil) sources to ensure food remains cold*
1/2 size 65mm pans included
All stainless steel construction with tubular frame
Streamlined for easy cleaning
Overhead fluorescent light
Quiet operation
Adjustable digital thermostat with temperature readout
Safety lock ball valve drain
Toughened safety glass front
Quality refrigeration unit running on environmentally friendly R404A refrigerant

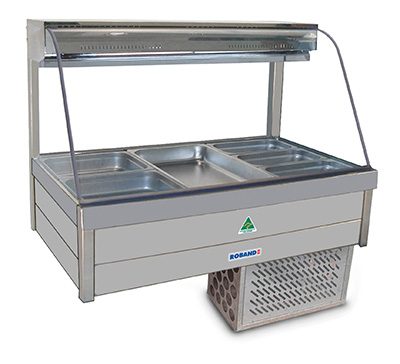

Note: Images are shown with various pan combinations. Please contact customer service.

Description

These units match the complete range of curved glass hot foodbars. The attractive curved glass front provides easy viewing of food contents. The units are designed to take a variety of gastronorm pans up to 65mm deep. Click here to view accessories for foodbars.
*Local health regulations can vary, please ensure intended use of these machines complies before ordering.

Note: Roband food display bars are designed to accommodate pans available from Roband Australia. Although other brands of pans may fit, this is not guaranteed due to variations in other manufacturer’s pans.

Downloads

Download Full Roband Catalogue

Download Refrigerated Curved Glass Food Bars Brochure

Click here to download instructions of current product version

Model Details:

Model Number	Description	No. of Pans Included	Power^	Current	Dimensions~ (w x d x h) (mm)	RRP AUD Ex GST
CRX23RD	Refrigerated cold plate & cross fin coil foodbar, double row, with rear roller doors and pans	6 x 1/2 size 65mm	530 Watts	2.3 Amps	1,030 x 615 x 750 – excludes refrig unit	$ 8,904

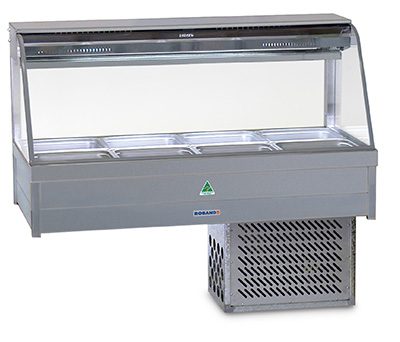

CRX24RD	Refrigerated cold plate & cross fin coil foodbar, double row, with rear roller doors and pans	8 x 1/2 size 65mm	625 Watts	2.7 Amps	1,355 x 615 x 750 – excludes refrig unit	$ 10,111
CRX25RD	Refrigerated cold plate & cross fin coil foodbar, double row, with rear roller doors and pans	10 x 1/2 size 65mm	815 Watts	3.5 Amps	1,680 x 615 x 750 – excludes refrig unit	$ 10,537
CRX26RD	Refrigerated cold plate & cross fin coil foodbar, double row, with rear roller doors and pans	12 x 1/2 size 65mm	815 Watts	3.5 Amps	2,005 x 615 x 750 – excludes refrig unit	$ 11,656

~Dimensions exclude protruding drain.
^Nominal ref. capacity.

Call Roband Australia on +61 2 9971 1788 to find the location of your nearest Authorised Dealer who can provide you with further information.
