Straight Glass Cold Plate & Cross Fin Coil - Piped & Foamed (no motor)

Straight Glass Cold Plate & Cross Fin Coil – Piped & Foamed (no motor)

Features:

Straight glass cold plate with cross fin coil foodbar
No refrigeration unit supplied, designed to be connected to external refrigeration unit
Cold plate and cross fin coil designed to provide cooling from top and bottom of unit*
1/2 size 65mm pans included
All stainless steel construction with tubular frame
Removable cross bars
Streamlined for easy cleaning
Overhead fluorescent light
Adjustable digital thermostat with temperature readout
Safety lock ball valve drain

Note: Some images are shown with various pan combinations. Please contact customer service.

Description

These units match the complete range of Straight Hot Foodbars. The cold plate and cross fin coil foodbars are designed to provide cooling from top and bottom sources. The food bar needs to be connected to an external cooling source. They can take a variety of gastronorm pans up to 65mm deep. Click here to view accessories for foodbars.

*Local health regulations can vary, please ensure intended use of these machines complies before ordering.

Note: Roband food display bars are designed to accommodate pans available from Roband Australia. Although other brands of pans may fit, this is not guaranteed due to variations in other manufacturer’s pans.

Downloads

Download Full Roband Catalogue

Download Refrigerated Straight Glass Food Bars Brochure

Click here to download instructions of current product version

Model Details:

Model Number	Description	No. of Pans Included	Power	Current	Dimensions~ (w x d x h) (mm)	RRP AUD Ex GST
EFX23RD	Cold plate & cross fin coil foodbar, to be connected to external refrigeration, double row, with rear roller doors and pans	6 x 1/2 size 65mm	NA	NA	1,030 x 615 x 675	$ 4,721

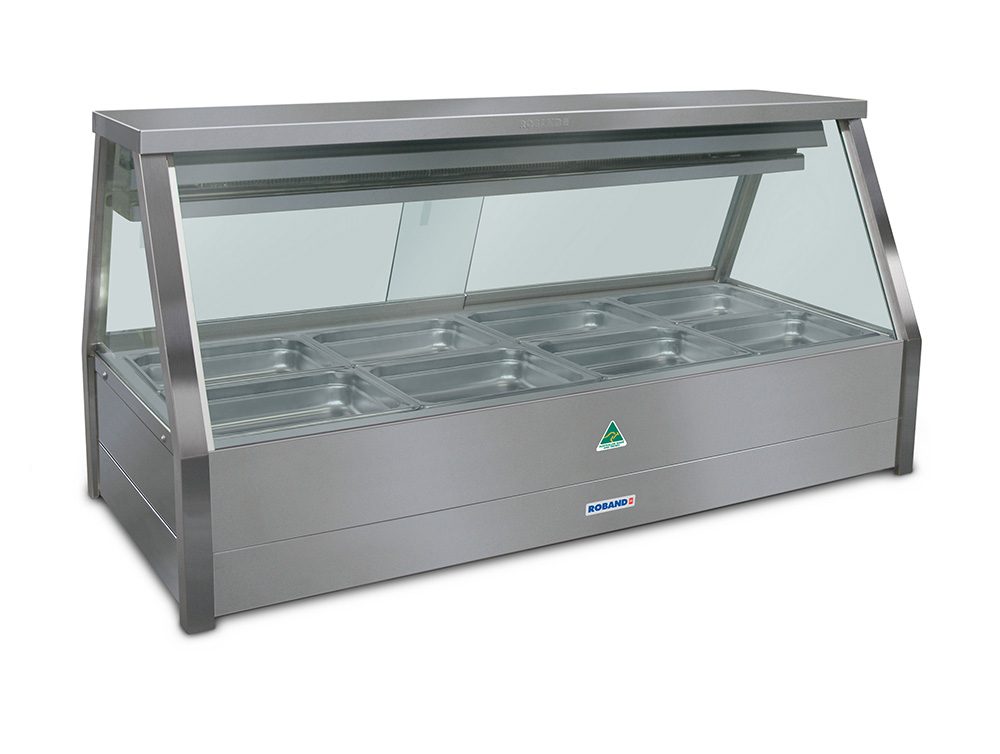

EFX24RD	Cold plate & cross fin coil foodbar, to be connected to external refrigeration, double row, with rear roller doors and pans	8 x 1/2 size 65mm	NA	NA	1,355 x 615 x 675	$ 5,214
EFX25RD	Cold plate & cross fin coil foodbar, to be connected to external refrigeration, double row, with rear roller doors and pans	10 x 1/2 size 65mm	NA	NA	1,680 x 615 x 675	$ 5,606
EFX26RD	Cold plate & cross fin coil foodbar, to be connected to external refrigeration, double row, with rear roller doors and pans	12 x 1/2 size 65mm	NA	NA	2,005 x 615 x 675	$ 6,131

~Dimensions exclude protruding drain.

Call Roband Australia on +61 2 9971 1788 to find the location of your nearest Authorised Dealer who can provide you with further information.
