Quartz Heat Lamp Assemblies Featuring Easy Fit Globes

Features:

  • Anodized aluminium body in a variety of sizes
  • Designed to give a balance of heat and light
  • Easy fit quartz halogen globes, easily replaceable in seconds
  • Metal lamp guard
  • Simple mounting system
Category: Brand:

Description

The stylish and functional Roband quartz heat lamp assemblies provide a balance of heat and light to front or back of house applications. They are manufactured from an exclusive extruded anodized aluminium, with a number of different sizes and options available to suit various requirements.

The Quartz Heat Lamp Assemblies now also feature Easy Fit globes which have a protective quartz outer layer that encapsulates the inner globe allowing for easier handling, and are easily replaceable without the need for an electrician.

Standard Models

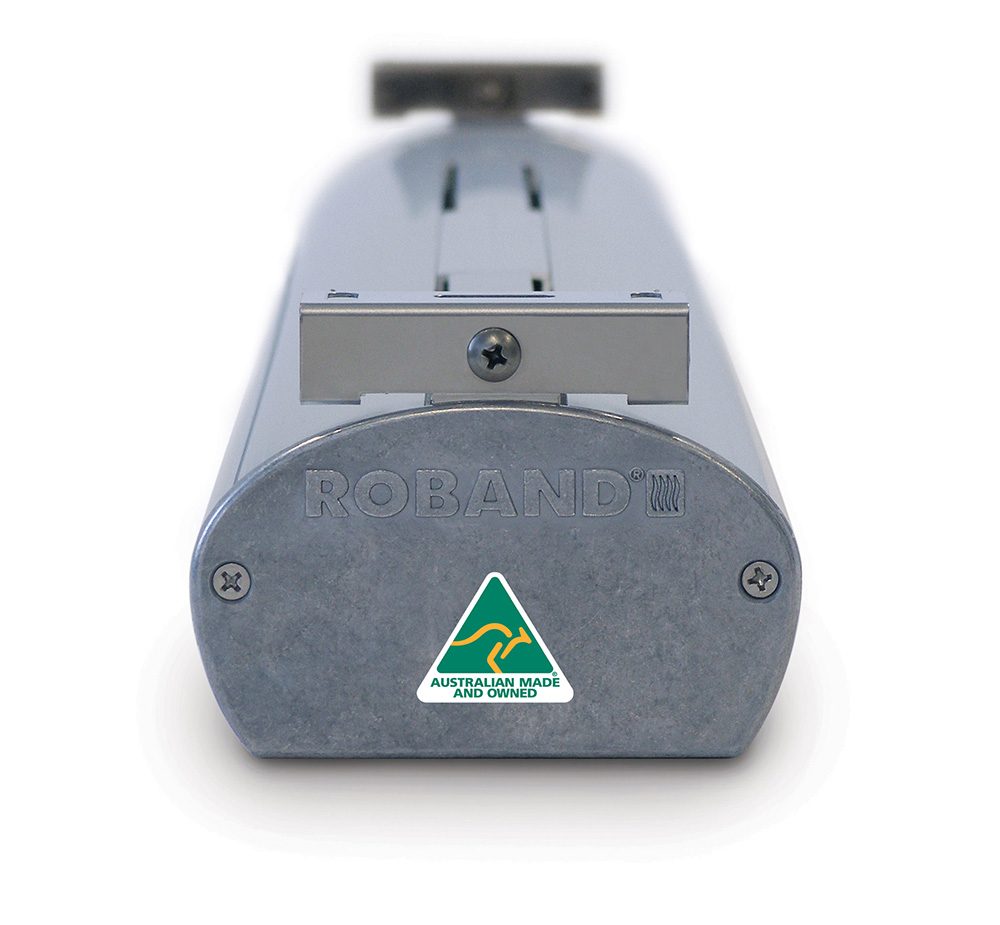

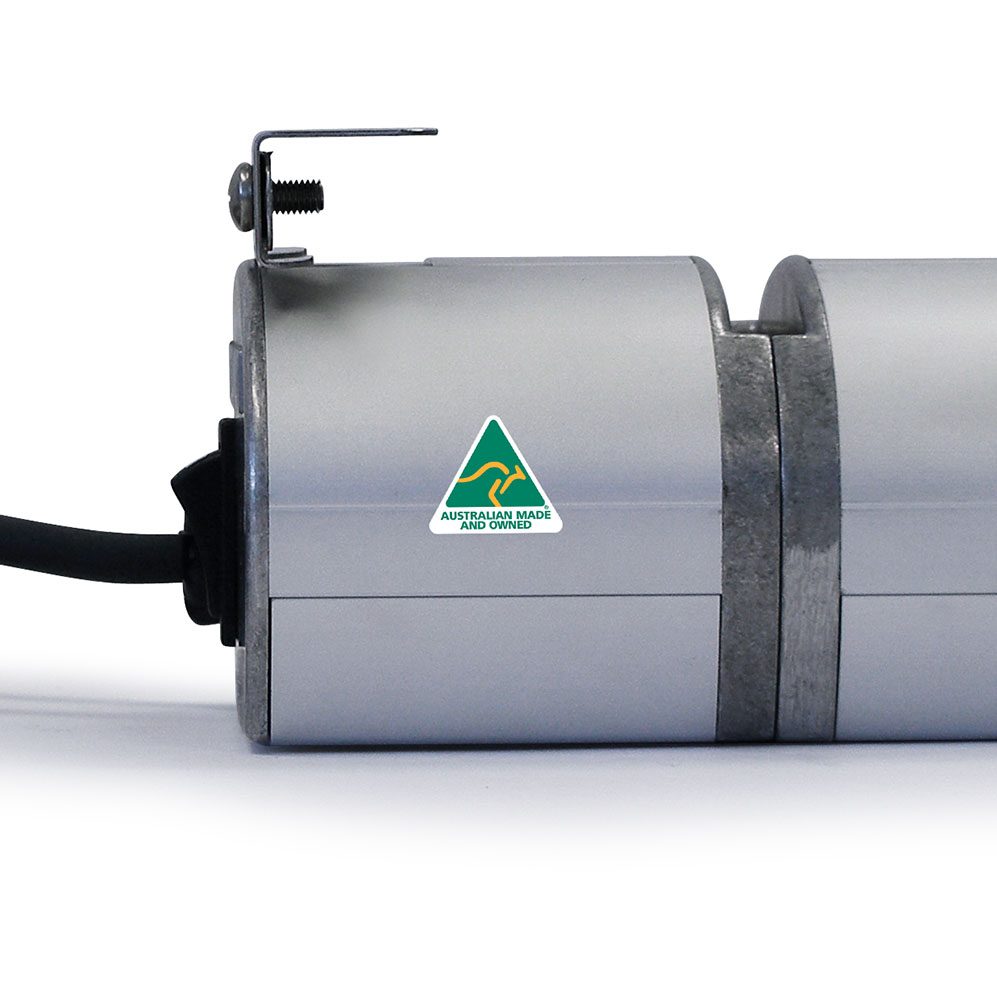

The standard heat lamps (e.g. HQ450E) come with a control box that houses the isolating on/off switch. They also feature a simple mounting system and come complete with a 10 Amp plug and cord.

Fabricator Models

The heat lamp assemblies are also available without the control box and on/off switch (e.g. HUQ375E) so they can be connected to a remote switch setup.

The removal of the control box shortens the length of the lamp assembly accordingly. These HUQ models come with the standard mounting mechanism, or optional mount kits are available with tubular framing.

Watch this video to see how easy it is to change the light globe

Showing easy globe replacement

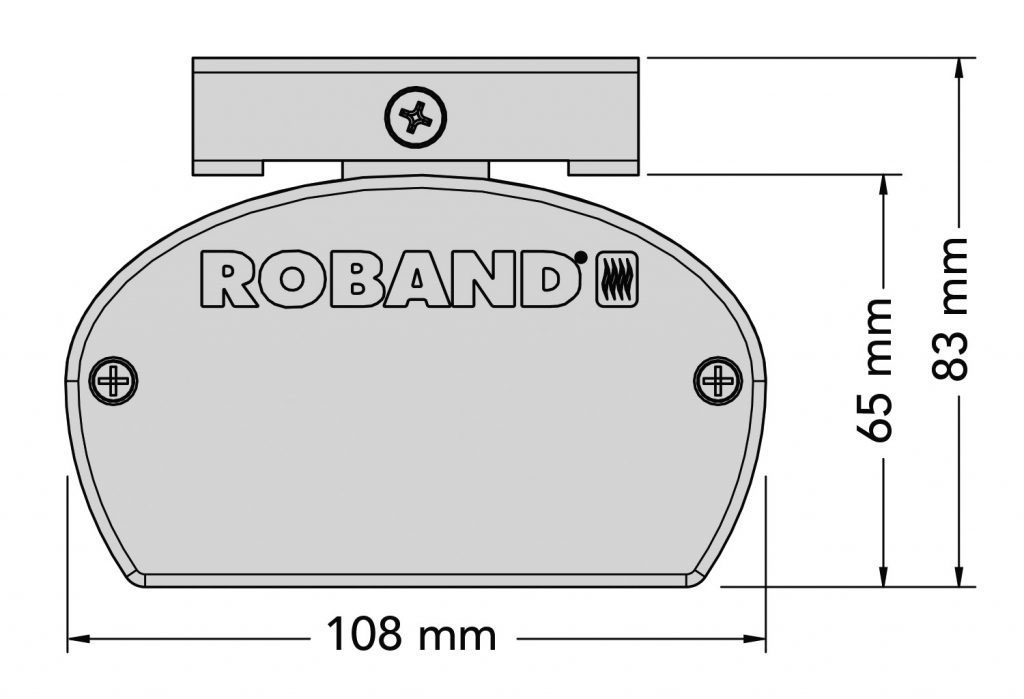

HQ and HF end dimensions
Dimensions for Standard Quartz and Fluorescent models
fabricator-end-view-dimensions-for-quartz-and-infra-red
Fabricator end view dimensions for Quartz and Infra-Red

Model Details – With Control Box:

Model Number Description Power Current Length
(mm)
Lamp Centres
Distance
(mm)
RRP AUD
Ex GST
HQ450E 1 lamp in 450 mm body 350 Watts 1.5 Amps 450 N/A $339
HQ900E 2 lamps in 900 mm body 700 Watts 3.0 Amps 900 400 $430

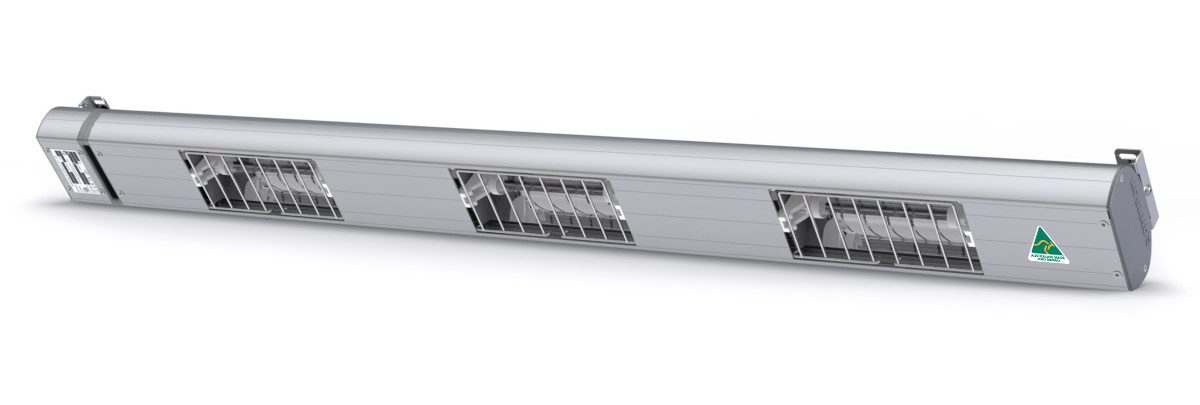

HQ1200E 3 lamps in 1200 mm body 1050 Watts 4.6 Amps 1200 345 $482

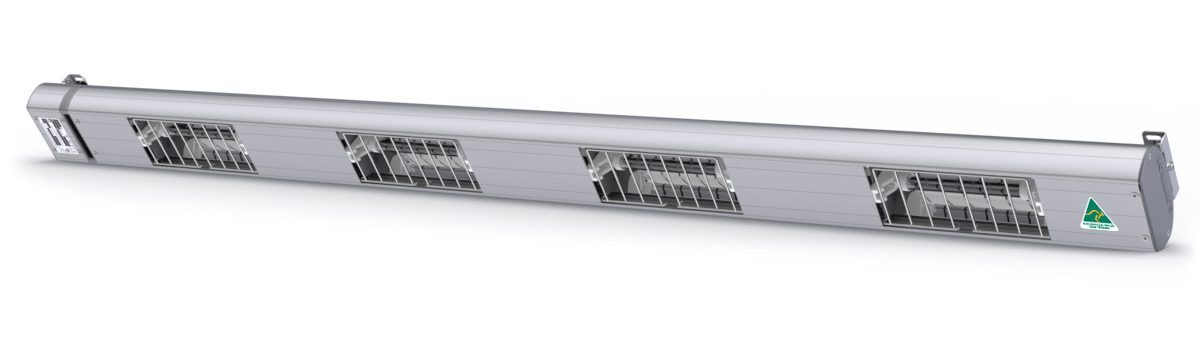

HQ1500E 4 lamps in 1500 mm body 1400 Watts 6.1 Amps 1500 345 $551

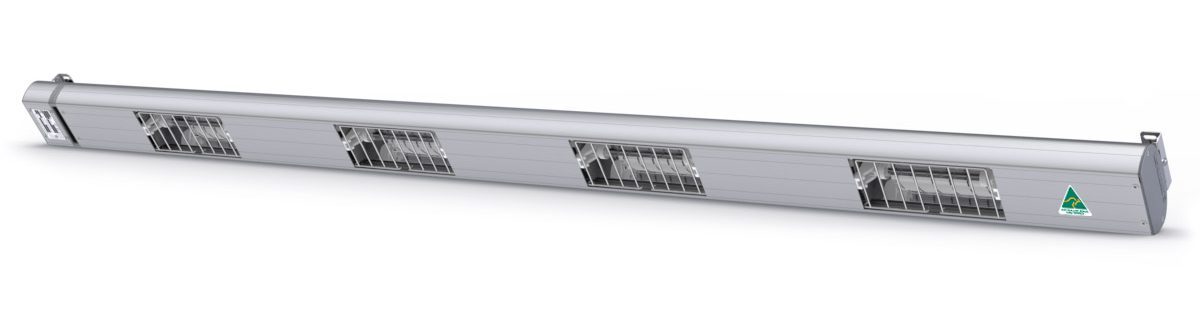

HQ1800E 4 lamps in 1800 mm body 1400 Watts 6.1 Amps 1800 400 $566
HQ2100E 5 lamps in 2100 mm body 1750 Watts 7.6 Amps 2100 400 $634



Model Details – Without Control Box:

(Complete with 1700 mm flying leads (A, N & E) for installation and remote switch)

Model Number Description Power Current Length
(mm)
Lamp Centres
Distance (mm)
RRP AUD
Ex GST

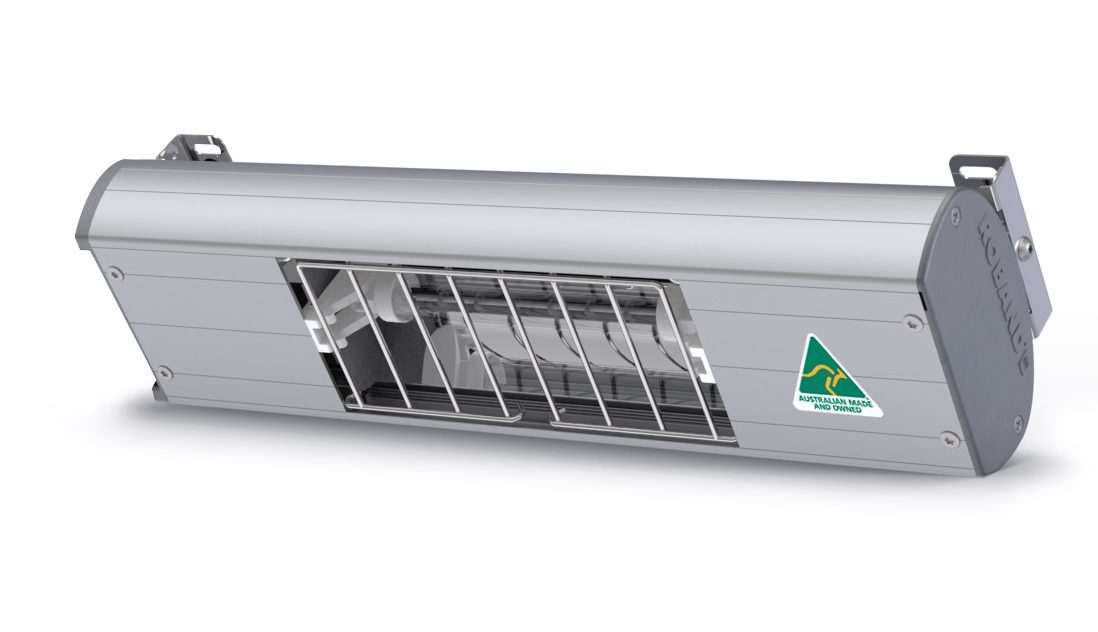

HUQ375E 1 lamp in 375 mm body 350 Watts 1.5 Amps 375 N/A $291

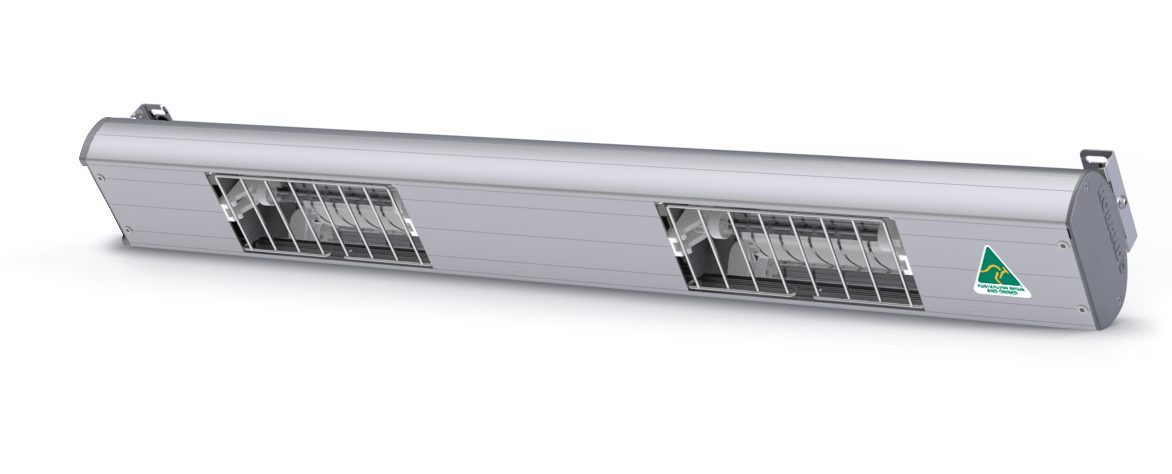

HUQ825E 2 lamps in 825 mm body 700 Watts 3.0 Amps 825 400 $384

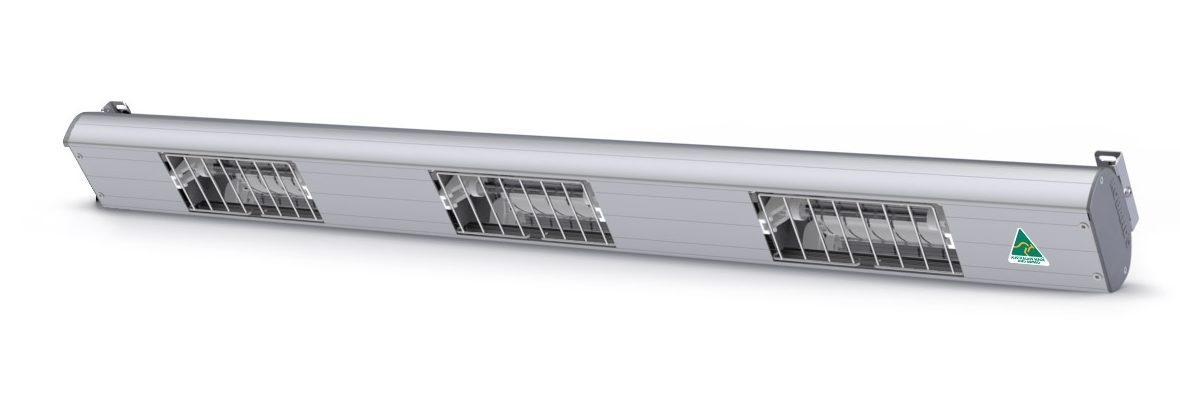

HUQ1125E 3 lamps in 1125 mm body 1050 Watts 4.6 Amps 1125 345 $435
HUQ1425E 4 lamps in 1425 mm body 1400 Watts 6.1 Amps 1425 345 $500
HUQ1725E 4 lamps in 1725 mm body 1400 Watts 6.1 Amps 1725 400 $519

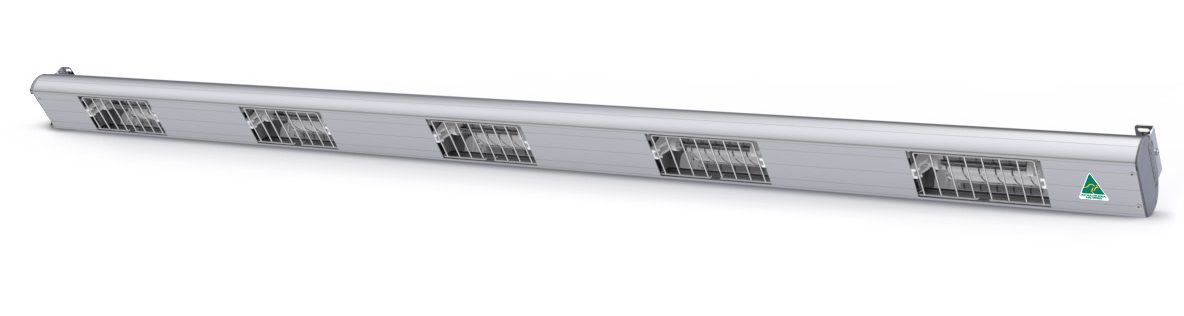

HUQ2025E 5 lamps in 2025 mm body 1750 Watts 7.6 Amps 2025 400 $589

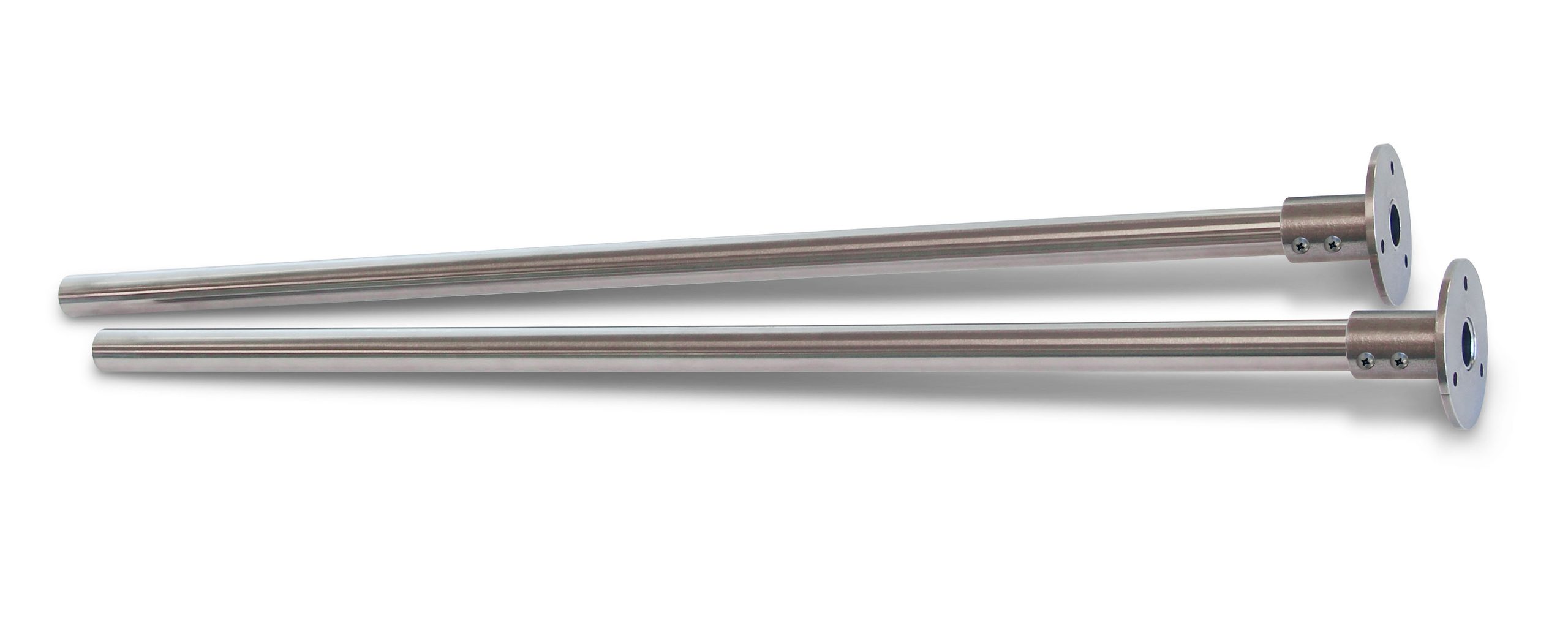

HM600 mount kit
HM600 mount kit
HM600 Customised in an HUQ825E assembly
HM600 Customised in an HUQ825E assembly

Optional Accessories:

Model Number Description Mount Type Length
(mm)
RRP AUD
Ex GST
HM600 Mount kit for all Quartz & Infra-red heat assemblies. 2 x 19 mm diameter round tubes, inserts and mounting brackets, with instructions for installation by an electrician. 600 mm tubes can be cut to the desired length. Round tube 600 $129



Call Roband Australia on +61 2 9971 1788 to find the location of your nearest Authorised Dealer who can provide you with further information.
